Native captures, experiments and progress. From the first traffic engine to a world in 3D.
5,985commits
7tagged releases
10 Mayfirst release, 2026
November
2026
Landmarks and city towers that build in under a second.
Landmarks, points of interest and tall city towers now generate in under a second from compact data records rather than heavy hand-built 3D files. The London Eye (with its 120-metre wheel, tubular rim truss, spoke cables, inclined A-frame and 32 passenger capsules) and the 96-metre Elizabeth Tower (Big Ben), with its stone shaft, Prussian blue and gilt clock faces, belfry and cast-iron spire, each build straight into the scene from a two-kilobyte record alongside full-height glazed office towers.
Native DirectX 12 · Landmarks & Towers · Research build
Looking up a glazed commercial tower from street level, with curtain-wall mullions, sunlit glass and lit office floors inside.
Native DirectX 12 render looking up at the London Eye: inclined white steel A-frame legs, tensioned backstay cables, tubular rim truss and passenger capsules.
Native DirectX 12 render looking up at Elizabeth Tower (Big Ben): Anston limestone shaft, Prussian blue and gilt clock faces, belfry colonnade and spire.Development notes
London Eye built in 0.3 seconds on CPU (82,120 triangles); Elizabeth Tower built in 0.7 seconds (85,156 triangles).
October
2026
Vehicle safety envelopes and camera tracking.
Real-time 3D vehicle bounding geometry and clearance trajectory solving along motorway corridors. Evaluates proximity vectors between high-speed tracking cameras and multi-lane highway traffic, projecting dynamic collision envelopes and speed telemetry directly through the camera optics at sub-frame intervals.
3D vehicle bounding geometry and speed readouts evaluated at 60 mph.
Corridor plan
Longitudinal station tracking
Corridor slice coordinating multi-lane vehicle streams with camera stations.
Development notes
Oriented 3D bounding envelopes projected across multi-lane motorway geometry. Evaluates clearance safety margins across dynamic vehicle manoeuvres and high-speed survey paths.
Survey-grade boundary and vegetation extraction.
Survey-grade boundary detection augmenting corridor detail along highway networks. Our extraction pipeline segments contiguous woodland belts, traces historical agricultural hedgerows, and vectorises drainage ditches and access gates directly from geospatial survey data.
Extracted polylines and canopy clusters feed directly into native 3D placement, aligning measured tree crowns and embankment scrub with motorway verges, gantries and structures.
Native DirectX 12 · Geospatial Boundary Extraction · Research build
Vectorised woodland belts, field hedgerows, drainage swales and gate candidates across highway and rural corridors.Development notes
Multi-class geospatial extraction resolving woodland belts, field boundaries, and drainage corridors. Feeds true-to-scale tree species and scrub profiles into native placement.
Flight corridors across the interchange.
Flight path planning and clearance telemetry across the four-level Almondsbury motorway stack. Trajectories test approach vectors and sensor occlusion behind moving traffic, diving between bridge decks with physical clearance sampled at 200 Hz against a strict one-metre safety floor.
Flight corridors export directly to bidirectional KML and CSV waypoint missions for autonomous drone survey corridors and logistics research.
Speed, thrust, angular rates and bridge clearance sampled at 200 Hz.
Carriageway plan
2D clearance blueprint
Approach vectors and camera look direction tracking behind an HGV.
Elevation slice
Deck slot profile
Vertical dive corridor descending between the M4 and M5 decks.
Development notes
Clearance and kinematic telemetry evaluated across 3D interchange infrastructure. Flight corridors export directly to standard waypoint mission formats for autonomous survey and logistics planning.
The street at night.
Street lights, headlights and tail lights now light the road after dark. Cars, vans, lorries and a double-deck bus carry working lamps and UK number plates, and the bus shows a lit destination display.
Native DirectX 12 · RTX 3080 · Research build
Street lights, tail lights and headlights in light mist.
Vans and lorries in evening traffic.Development notes
Rendered offline at 1920 × 1080, not in real time.
Worn roads and roadside plants, at street level.
Road surfaces now show wear and cracks, with drainage gullies, a coloured cycle box and tactile paving at the crossings. Grass and dandelions grow along the kerbs and joints. Trees, lighting columns, signals and street furniture share the same scene.
Native DirectX 12 · RTX 3080 · Research build
A street-level still from the native renderer.Development notes
Rendered offline at 1920 × 1080 with 32 samples, not in real time.
Trees and foliage
Trees now have fuller, overlapping crowns, improved conifer colours and more detail in the leaves, branches and rowan berries.
Native DirectX 12 · Vegetation study
Overlapping broadleaf and conifer canopies. Click the image to see it full size.
A closer look at leaves, branches and clusters of rowan berries. Click the image to see it full size.Development notes
Two native research renders from 7 October 2026, shown in full without retouching. Both were rendered offline at 1920 × 1080 with 48 samples. Tree sizes and canopy coverage are guided by records and photographs; additional planting and some species are approximations. These are vegetation studies from a build in progress. Sources and credits.
Traffic lights and street furniture.
Traffic lights now stand at the crossings, with signal heads, backing boards, push-button units and tactile paving. Lighting columns, telecom masts, cabinets, signs and litter bins are in place around them.
Moving traffic and pedestrians are in progress, driven by VeriStreet's own traffic model with typical signal timings.
Native DirectX 12 · RTX 3080 · Research build
The lights shown are a still, not a running signal plan.
Lighting columns, a telecom mast and a cabinet.Development notes
Positions are approximate, not a survey. Both stills were rendered offline at 1920 × 1080, not in real time.
September
2026
A new light on the same house.
Sunlight, soft shadows and reflected surroundings now work together in the native renderer. The sun follows a place and time; light bounces between surfaces, and windows reflect nearby buildings.
Native DirectX 12 · RTX 3080 · Research build
Previous lightingNew photo mode
Same house. Same camera. Both rendered natively.Drag to compare overcast rendering with golden-hour photo mode. Exposure, colour balance and sampling change with the lighting. These are rendered stills, not a real-time performance demonstration.Development notes
The sprint adds a physical sky, sun shadows, diffuse bounce, native photo output and scene reflections for glass. The paired house captures use the same executable and geometry at 1920 × 1080, with 64 samples. Roof colour patches, dark shaded areas and incomplete surroundings remain visible. Integration into the main desktop app is still ahead.
Windows and doors, built as parts.
A house pilot now has separate frames, panes, seals and hardware. Five openings, including a casement window, entrance door, garage and patio doors, can change pose while keeping their construction intact.
Closed. The new window assembly.
Open. The same parts, with the top opener rotated.
Development notes
The five pilot openings contain 186 named parts. Native comparisons checked the closed and open states without rebuilding their geometry. Published dimensions inform selected profiles; other sections and mechanisms are estimated. This is one house type, controlled through construction data, with no new desktop UI yet. The window view shown here uses the existing environment reflection.
Tiles with depth. Cleaner distant roofs.
The same house pilot now uses 1,912 modelled pantiles, with ridge caps, valleys and roof-edge details. A separate repair reduces the interference patterns that fine roof courses produced at a distance.
Previous roofModelled tiles
The roof pilot, from the same native camera.Tile shape and course spacing are modelled; colour comes from the reference photograph. Patchy colour and some rough roof junctions remain. Reference credit.Development notes
The tile covering uses published nominal dimensions, with estimated details where the source does not establish them. The higher geometry cost still needs work before use across a town. For distant roofs, course relief fades as it becomes smaller than a few pixels, retaining the roof boundary and photographic surface.
British buildings by type and era
The building rules first written for Pontypridd are being widened into a catalogue of 156 British building types, 77 of them homes, from medieval hall houses to today's low-energy terraces.
Each type carries its own construction profile: how its walls are built, its storey heights, how deep its windows sit, and the pitch and covering of its roof.
Eight types are the most complete so far: a Georgian brick terrace, a Scottish sandstone tenement, a Welsh valleys stone terrace, Scottish four-in-a-block cottage flats, a post-war council semi, an interwar detached house, a Victorian textile mill and an interwar pebbledash semi. The rest of the catalogue is in progress.
Each is modelled on a photograph of a real building, with windows and doors cut through the wall, and its front is textured from an elevation generated from that photograph.
The renders are now drawn with 16 samples per pixel, which keeps window bars, gutters and roof edges clean.
Georgian terrace
Scottish tenement
Welsh valleys terrace
Four-in-a-block flats
Post-war council semi
Interwar detached house
Textile mill
Pebbledash semi
28 September 2026Eight building types drawn natively in DirectX 12 and shown outside the town model. Photograph credits are on the sources page. Click an image to see it full size.
Roads through the woods
Roads are built from their mapped lines at standard widths: a two-lane road is 7.3 metres across, in two 3.65 metre lanes, with centre and edge lines.
Woodland now reaches the verge. Ferns, grasses, shrubs and trees grow up to the road edge and are kept clear of the carriageway.
The planting is generated to suit each place, not surveyed.
26 September 2026A two-lane road through woodland in the Pontypridd model. Click the image to see it full size.
Woods, hedges and gardens across the whole town
About 2.9 million plants across 14 square kilometres of green space, drawn from 27 species: oak, beech, ash, birch, rowan and Douglas fir through hawthorn, hazel, bramble and bracken to fescue, clover and dandelion.
Mapped woodland is filled out with nearly 150,000 more trees and an understorey beneath them, so the valley sides read as woods rather than scattered trees.
The 5,679 trees found in Welsh Government LiDAR and OpenStreetMap stay exactly where they were found.
Grass fills every eligible green space and keeps off roads, pavements and other hard surfaces.
Species are chosen to suit each place and its height. They are generated, not surveyed.
24 September 2026Wooded hillsides above the terraces of a Pontypridd valley. Click the image to see it full size.
24 September 2026Looking down through the hillside woodland, with the terraces in haze below. Click the image to see it full size.
Terraces built to a regional grammar
The building compiler now chooses materials by location. Pontypridd gets Pennant sandstone, and the same rules are tested at London, Aberdeen and Belfast coordinates.
Historic terraces are laid out bay by bay: two bays on frontages of 3.8 to 6.5 metres, sash windows and four-panel doors at their real sizes, and openings set 165 mm into the wall.
On streets that climb, generated front doors step up to the pavement instead of disappearing into the slope, and the wall below becomes a plinth.
One physical material standard across buildings, roads, landscape, water and planting: 60 profiles, each with its own colour, roughness and reflectance.
Window glass reflects the sky; shadow gathers in window reveals, under eaves and where walls meet the ground; ridge tiles, mortar and copings weather darker than the walls around them.
Front garden walls and railings along the terraces.
16 September
24 September
Eight days apartTerrace fronts before and after the regional building grammar.
24 September 2026Stone and rendered fronts, chimney stacks and front garden walls with railings. Click the image to see it full size.
Weather that comes from outside, and surfaces that answer it
Live conditions for the town's own coordinates are pulled from the Open-Meteo service: rainfall, wind, temperature and cloud.
Puddles gather in ruts, gutters and the low points of the ground instead of being painted on, and ripples cross standing water while rain falls.
Wet stone and asphalt darken the way they do in life, rather than simply turning shiny.
Screen-space reflections, with ray tracing picking up what the screen itself cannot see, over a hierarchical depth chain with blue-noise sampling and a filtered history.
Terrain subdivided and displaced past the resolution of its input grid, without displacing reconstructed vertices twice.
Hyperlocal facade kits integrated, and road geometry batches bounded after the terrain refinement.
Vehicle physics in a process of its own
Vehicle dynamics moved out of the app into a dedicated worker running a one millisecond tick, or 1,000 Hz.
A single writer publishes each snapshot to every reader at once. Readers copy it into their own storage and let go immediately, so a slow, descheduled or failed reader can never delay physics or hold a slot open.
Every reader keeps its own sequence and history, and a restart always begins a fresh session rather than reusing counters.
The physics worker stays separate from the older traffic entry point, so the two can move independently.
Ray-traced light, and edges that hold their shape
The atmosphere pass now runs on DirectX ray tracing 1.1 and refuses to start on a device below it.
Bounced light comes from a probe volume (DDGI) computed on its own asynchronous queue, timed separately from the frame.
Direct light is sampled with reservoirs (ReSTIR), so many lights can be considered without tracing them all.
The same pass carries micro-weather into the shading, which is what makes wet surfaces read as wet.
Screen-space motion vectors and sub-pixel camera jitter plumbed through the 3D passes.
FSR 3.1 reconstruction wired in behind a dispatch contract that refuses to run without colour, reverse-Z depth and velocity.
Window frames, gutters and roof lines hold their edges instead of stair-stepping.
19 September 2026The result of both, in one street. Click the image to see it full size.
Masonry with real depth, and rooms behind the glass
Stone and brick keep their relief at grazing angles, the very angle that shows a course of masonry, where the shader used to flatten them. The height march doubled in length, and a second march folds a self-shadow into each mortar bed.
Rooms know which storey they are on: sofas, televisions and bookshelves downstairs, beds, wardrobes and half-drawn blinds upstairs, desks and strip lighting in commercial ground floors, with about a third of rooms lit by a warm lamp.
Ground cover stopped shimmering: gentler blade movement, a calmer sheen and a corrected texture bias.
16 September 2026Mortar joints, moulded surrounds and rooms behind the panes.
A town that looks lived in
Lush UK ground cover and a single overcast sky across the whole world.
Garden beds fill to the kerb, with every clump jittered, turned and scaled, and the grass tapering onto the kerb instead of ending in a wall.
Front paths narrowed from a corridor to a single-person path, and open ground greened by a verge pass that is no longer confined to a narrow band beside the road.
Complete UK suburban building kits, driven by the source typology, with universal facades and HDR building shading.
Slate reflectance calibrated against native roof views, and procedural landmark assemblies replacing plain shells once they are complete.
Tiled aerial segmentation, and street furniture aligned to its source data.
13 September16 September
The same crossroads, three days apart. Drag the line to compare.

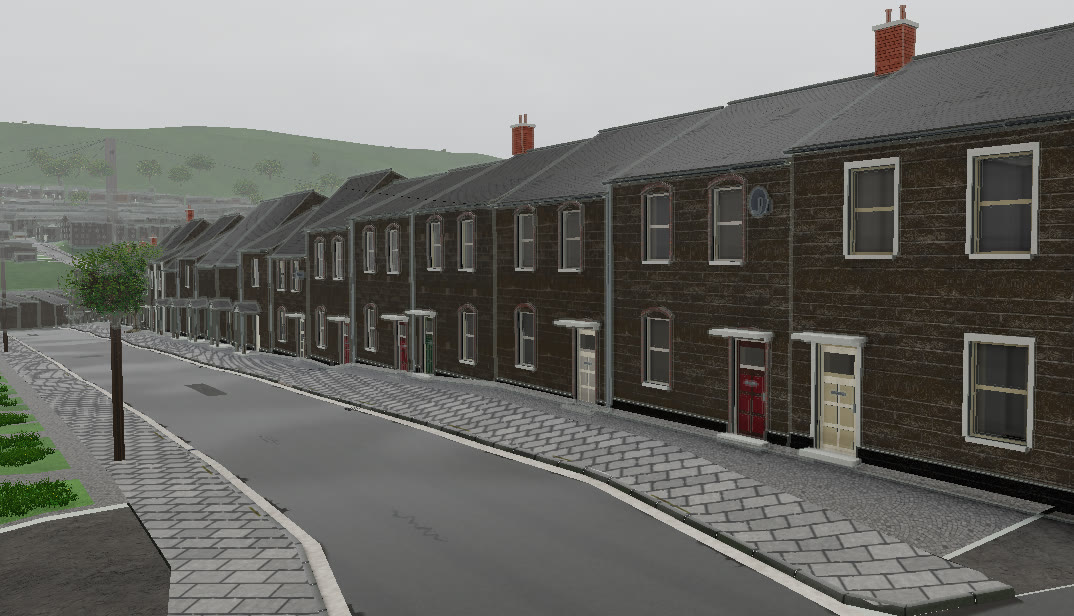

16 September 2026Kerbs, footways and verges along a Pontypridd street.
Smoother roadside slopes
Road cuttings and embankments now blend into the hillside across the terrain grid.
Buildings, property by property
Fitted bay windows, stone facade relief, joinery, roof edges and rainwater goods in the building assets.
Glass with room depth behind windows.
Reviewed property observations carried through the building pipeline to the desktop app.
Facade image models tested against held-out Pontypridd street photographs.

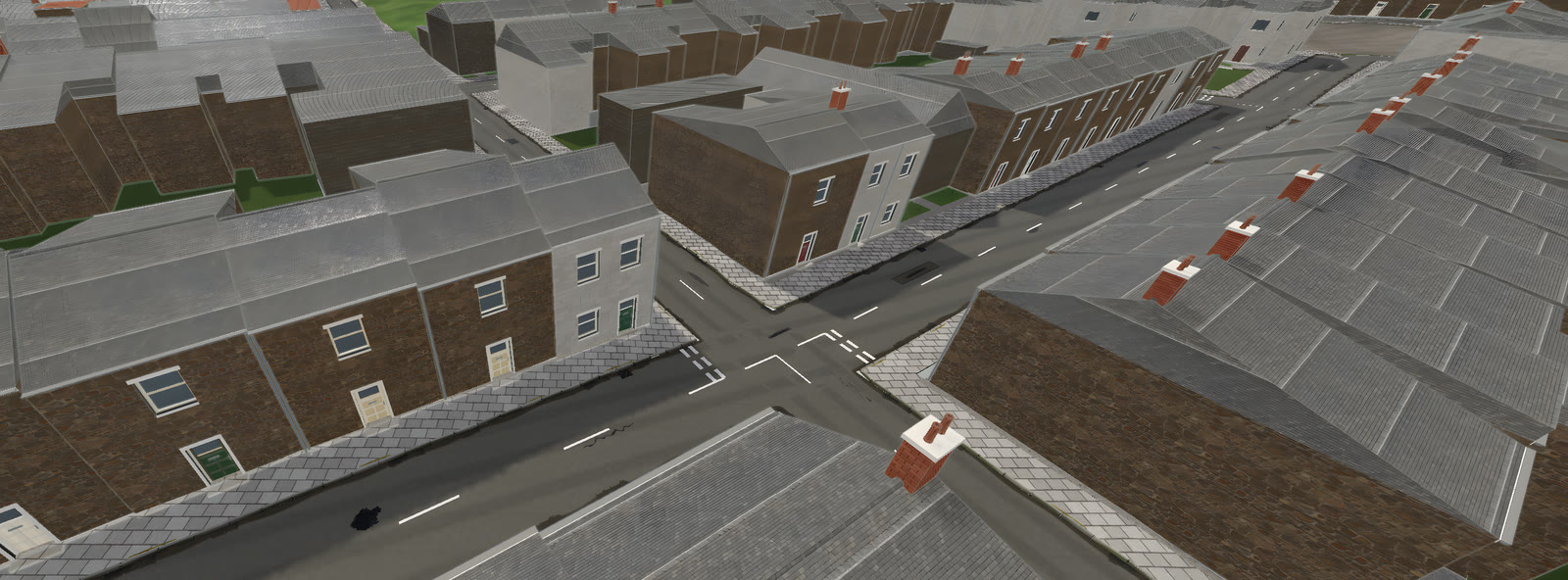

13 September 2026The crossroads on this date, before the planting, street furniture and lighting work that followed.
A fuller Pontypridd
Ground cover, summer vegetation and an animated sky.
Recovered street detail with stable road markings up close.
World lighting on DirectX 12 Ultimate.
Separate World, Analysis, Data, Live / Replay and Settings pages.
Kerbs, tactile paving and yellow lines
Exact footway and kerb layout, with tactile paving seated on footways.
Verified yellow line markings in the desktop road renderer.
Laptop hardware evidence gathered on a Lenovo IdeaPad.
World lighting controls in the desktop app.
August
2026
Early days of the city compiler
An early version of the compiler turned a second city region into streets, building footprints and roofs in the desktop app.
Pontypridd's roads recompiled from the same graph as the rest of the town.

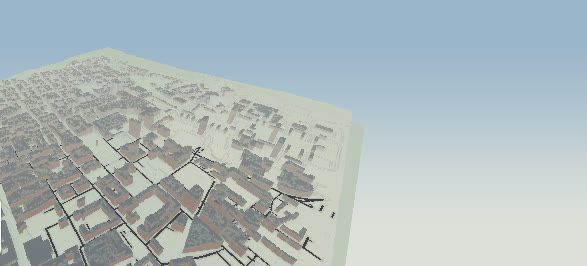

20 August 2026An early compiler test, before today's building and street detail.
Buildings for whole cities
City-wide building packages in a new compact format with a strict loader.
Pontypridd's chimneys and dormers measured from elevation data.
Large scenes split across multiple mesh-shader draws.
Kerbs, markings and shopfronts
Bristol's kerb network, projected road markings and textured road surfaces.
A masonry bond generator and a near-field facade library for shopfronts.
Ground and trees
Tree canopy from LiDAR, a ground material library, textured terrain and instanced trees.
Bristol's turn restrictions imported into the road network.
Travel demand and live feeds
A travel demand pipeline, from public trip data to a compiled trip table estimated against counts.
Live feeds bound to the network: TomTom flow, VivaCity counts and ANPR journey times, with a first live replay.
DfT Street Manager roadworks received by a live endpoint, with a closure re-route demonstration.
July
2026
A DirectX 12 renderer
A new DirectX 12 core with a render graph and offline shader tooling.
GPU-driven physically based rendering, tested with 10,000 vehicles.
The full Bristol scene rendered and benchmarked, then the desktop moved to a native Windows (WinUI 3) app.
A street map linked to the 3D view.

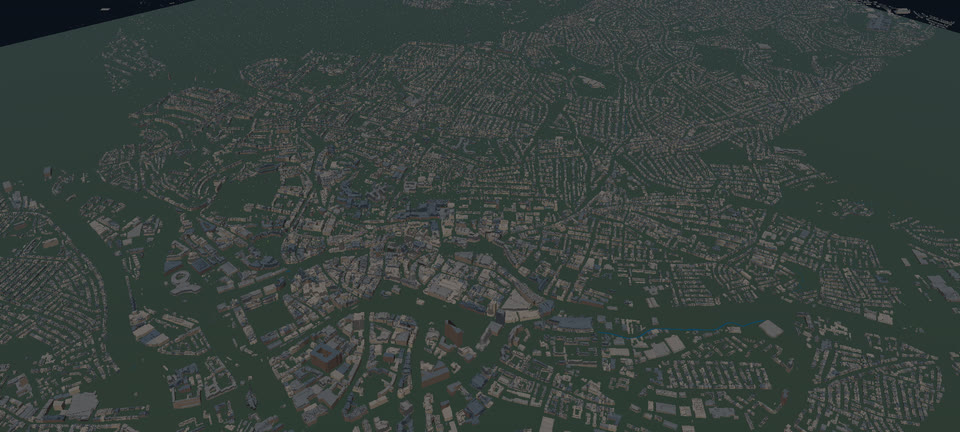

30 July 2026Bristol in the first full DirectX 12 scene.
Real elevation v4.0.0
Environment Agency LiDAR at 1 m resolution as the ground source.
Bridges, decks and portals solved in three dimensions.
Terrain, embankments and water that follow the measured landform.
Linked 2D and 3D
A 3D command view of Bristol with building massing.
A split view where the 2D map and 3D scene always agree.
A workstation layout for analysts.
Research release and roundabouts v3.0.2
An internal research prerelease of the engine.
Roundabout behaviour extracted from recorded driving (rounD), held behind a pre-registered validation ladder.
Replay Deck and junction behaviour
A Replay Deck to scrub, select, fork and compare runs.
Standing queues, per-approach signals, box junctions and pedestrian stages.
Give-way behaviour at unsignalised GB junctions.
The first 3D world
A chunked city pipeline for Totterdown, Bristol, locked to LiDAR terrain.
Buildings with level floors, terrace roofs and chimneys.
June
2026
Georeferenced exports and fidelity research
OpenDRIVE export placed on real-world coordinates.
Occlusion experiments comparing simple and detailed geometry at a Bristol junction.
Hazard Calculus v3.0.0
From what a driver cannot see to a minimum-risk speed, including degraded traction.
Gap acceptance calibrated on recorded intersection driving (inD) and validated at held-out locations.
Behaviour learned from real driving v2.0.0
A human gap-acceptance kernel fitted from recorded roundabout driving (openDD).
Traffic signals and a map-style visualiser for Bristol.
Windows release packaging.
An event-driven city engine
Free flow, car following and right of way as events, matching the reference engine on 12 of 12 cases.
A deterministic city-scale run and a throughput benchmark on modest hardware.
A directed multimodal GB road network.
The scenario machine
A standards-compatible OpenDRIVE junction export.
Scenarios with exact replay, a failure ledger and an edge-case finder.
May
2026
Road markings by country
Country-aware road marking profiles for OpenDRIVE, with a validator.
The first release v1.0.0
A deterministic traffic engine and an OpenDRIVE exporter.
Entries are written by hand. The counts above come from the project's own history, last changed on 9 November 2026.
